How to Validate a Device's Performance for Broox Solutions

Broox Vision node based solutions require varying levels of processing power depending on the number of capabilities you plan to run simultaneously. This can impact the frames per second (FPS) and overall performance of your system. To help you determine if your device meets the necessary requirements, we offer an easy-to-use application called the Broox Benchmark Tool. This tool is designed to help developers and system integrators validate edge device performance before designing event-driven systems with Broox solutions.

Why Use the Benchmark Tool?

The Broox Benchmark Tool provides a comprehensive analysis of your system's performance, ensuring it is capable of supporting Broox solutions. It helps identify compatibility with various detection presets, enabling you to make informed decisions when selecting or configuring edge devices.

Step-by-Step Guide

1. Download and Installation

  • Windows: Download the Broox Benchmark Tool for Windows and save it to a location of your choice.

  • Linux: Download the Linux-compatible version of the tool and save it to your device. Ensure the file has executable permissions (chmod +x Broox_Benchmark).

2. Running the Tool

Before starting the test, make sure to close all applications and unnecessary processes to ensure that the benchmark tool can evaluate the computer's performance in a clean and clear environment.

  • Windows:

    • Double-click on Broox_Benchmark.exe to launch the tool.
    • Follow the instructions displayed in the console.

  • Linux:

  • Open a terminal and navigate to the folder where the tool is saved.
  • Run the tool using the command: ./Broox_Benchmark.
  • Follow the prompts displayed in the terminal.

3. Output Report

  • Once the tool has completed its process, a .txt file will be generated in the same folder as the tool.
  • This report contains detailed specifications and performance metrics of your system.

What's in the Report?

Key Sections of the Report

  1. System Specifications

  2. Information about the CPU, GPU, RAM, and other hardware components.

  3. Performance Metrics

  4. Details about the system's ability to process data efficiently for Broox solutions.

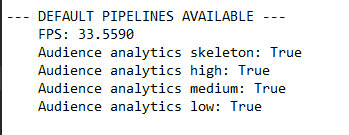

  5. DEFAULT PIPELINES AVAILABLE

  6. A list of pipelines your device can support, providing insight into its compatibility with Broox's platform.

  7. Use this information to evaluate whether your hardware is suitable for designing and deploying event-driven systems.

After Validating Your System

Once you’ve validated your edge device’s performance:

  • Explore this link to learn about the supported features and capabilities of the Broox Vision node. This information will help you align your device's potential with the functionality required for your project.

  • Use the performance data to identify potential bottlenecks, optimize system design, and determine whether additional resources or hardware upgrades are necessary before implementation.

  • Start designing and deploying event-driven systems with Broox solutions, confident in your device's capability to handle the workload.

For additional support or questions, contact us at support@broox.io or reach out to your dedicated account technical agent.
